CUAV IST8310 External Electronic Compass

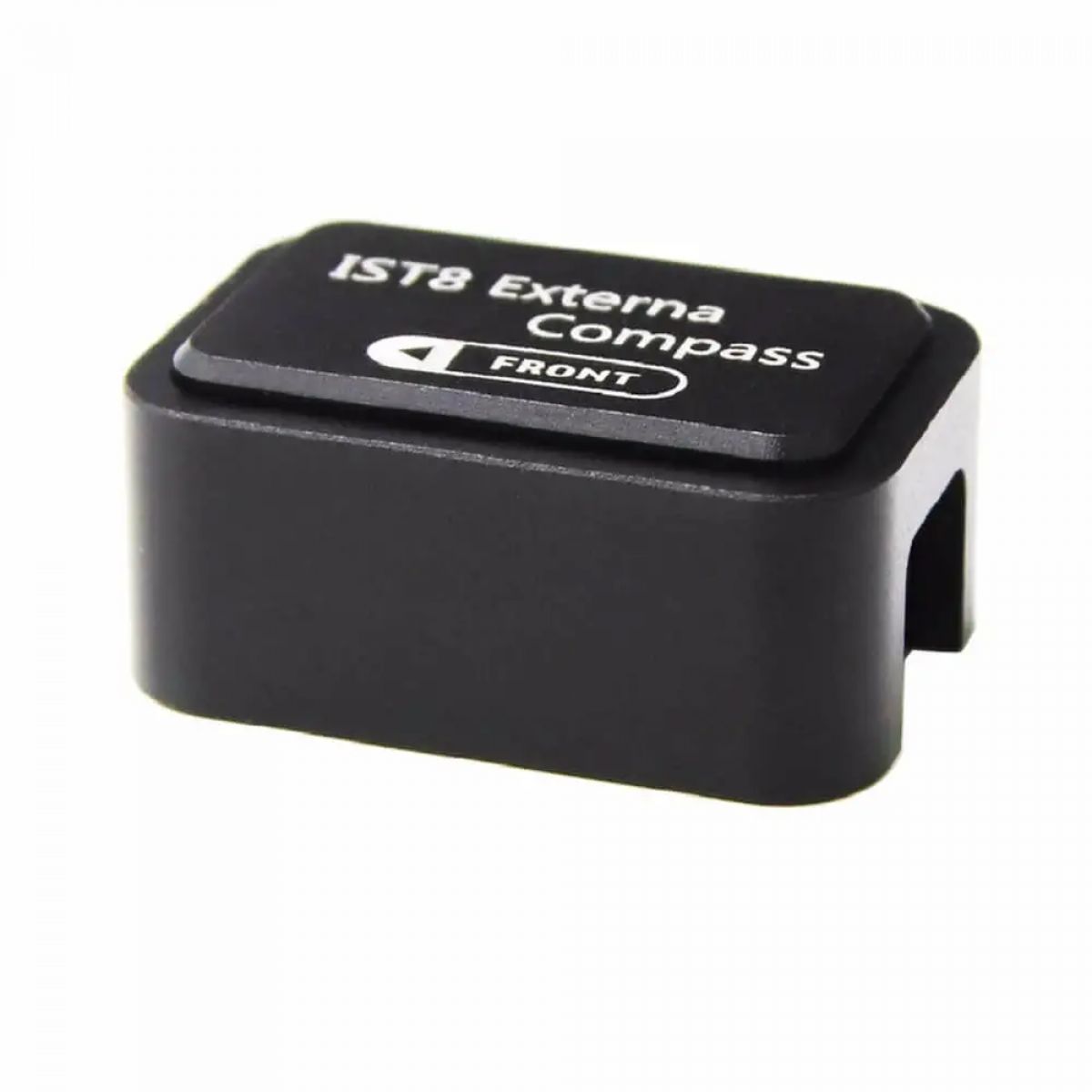

CUAV IST8310 External Electronic Compass Ultra-compact size, easy installation, and excellent interference resistance Features the built-in IST8310 geomagnetic sensor (from iSentek) in a 3 × 3 mm LGA package, widely used in unmanned systems Can serve as an external electronic compass for intelligent controllers Compatible with PX4 and ArduPilot firmware. CUAV IST8 External Electronic Compass Brief Ultra-compact size, easy installation, and excellent interference resistance Features the built-in IST8310 geomagnetic sensor (from iSentek) in a 3 × 3 mm LGA package, widely used in unmanned systems Can serve as an external electronic compass for intelligent controllers Compatible with PX4 and ArduPilot firmware CUAV IST8 Specification Main parameters Rated voltage 10 ~ 60V（3 ~ 14S Lipo) Current(MAX) 60A Current Accuracy ±0.2A Voltage Accuracy ±0.1V Interface current 12V OUT 4A 5V OUT 2A FC power 5A Interface type Battery XT60 12V OUT 5V OUT FC Power GH1.25 Weight 35g CUAV IST8 installation Please connect the IST8 electronic compass to the I2C interface of the intelligent controller. Please make sure that the arrow in the above figure points to the front of the intelligent controller. Supported firmware The firmware of the CUAV V5 intelligent controller is perfectly compatible with the external electronic compass, both Pix and APM firmware. If you are using another intelligent controller, please contact customer service.
